Our Radar Pattern Test and Optimisation Rig (RAPTOR) enables In-House Radiation Pattern Measurements for devices working at 60 and 77 GHz. The dynamic range of more than 50 dB is sufficient to verify if the device under test (DUT) meets the requirement for FCC and ETSI standards before moving to accredited laboratories.

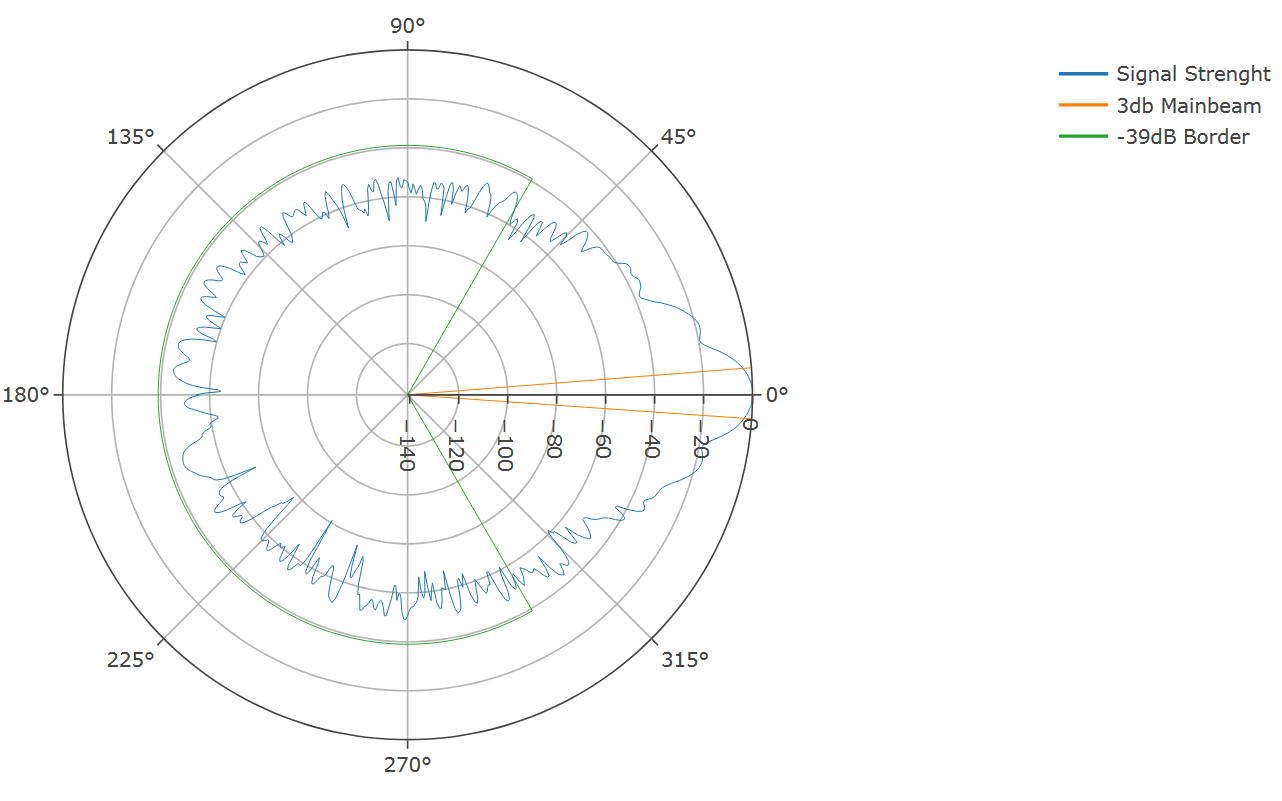

We provide comprehensive measurement reports, including the complete radiation pattern as well as further analysis about the DUTs compliance to given standards regarding half-power beamwidth and sidelobe levels.

The RAPTOR serves as a strong tool in the development of RF devices by providing fast and reliable evaluations of a given prototype and thereby facilitating faster and cheaper iterations in radar systems and enclosure design.
