This livedemo demonstrates the excellent features of Wellenzahl's static and dynamic background estimator which are highly recommended for filling level applications within challenging environments. Here, we have used an industrial humidifiert to demonstrate our powerful filling level hardware and firmware. We are measuring through the lid (bulk plastic and some metal parts within the radar beam) and also the heating pipes are clearly visible for the radar. However, this livedemo demonstrates that we can measure the water surface very accurately.

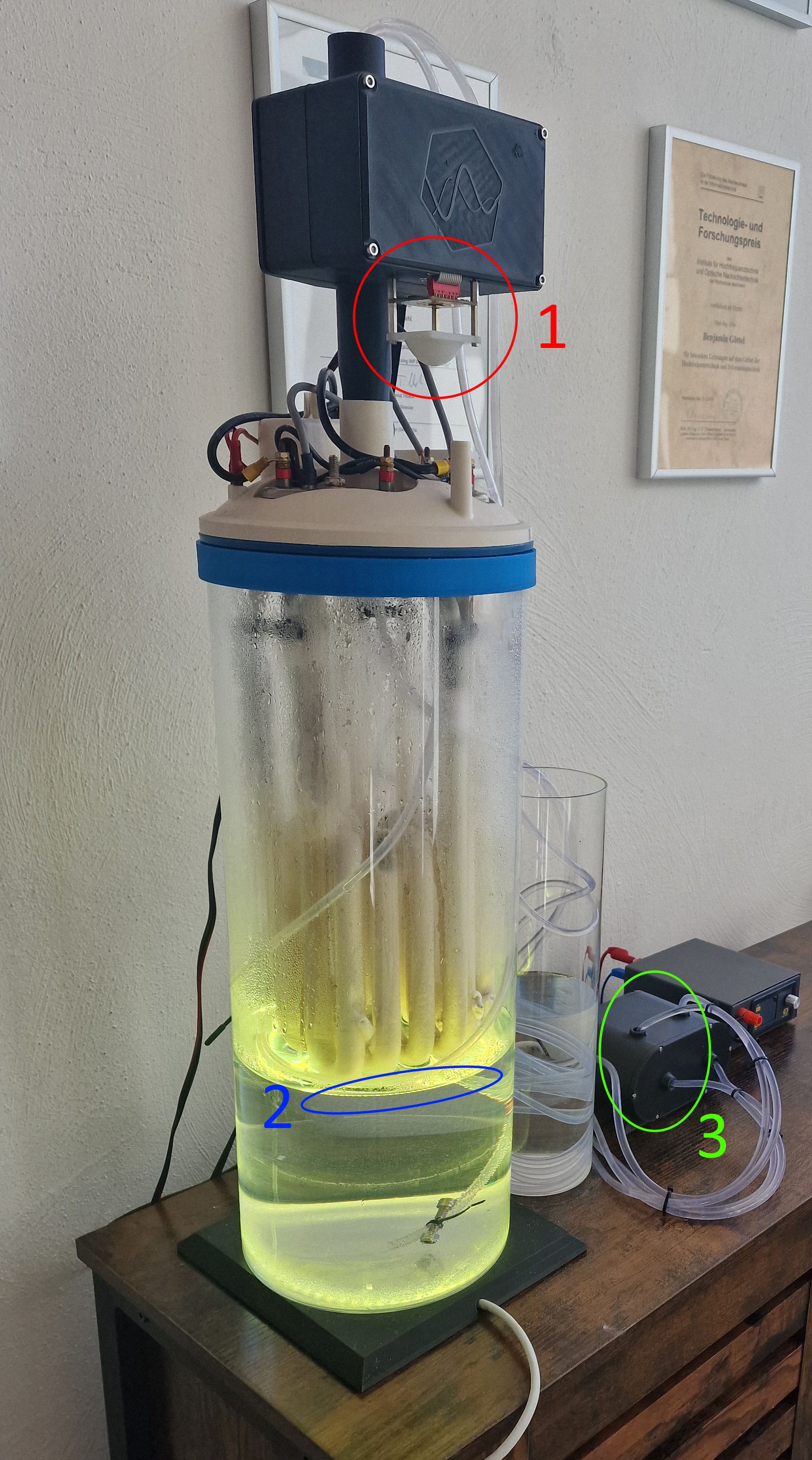

  1. A Wellenzahl 60 GHz radar module (RAPIDv3.21_wr10_EBG) with dielectric lens is located on the top
  2. The relevant target after the Wellenzahl static and dynamic background estimator is applied

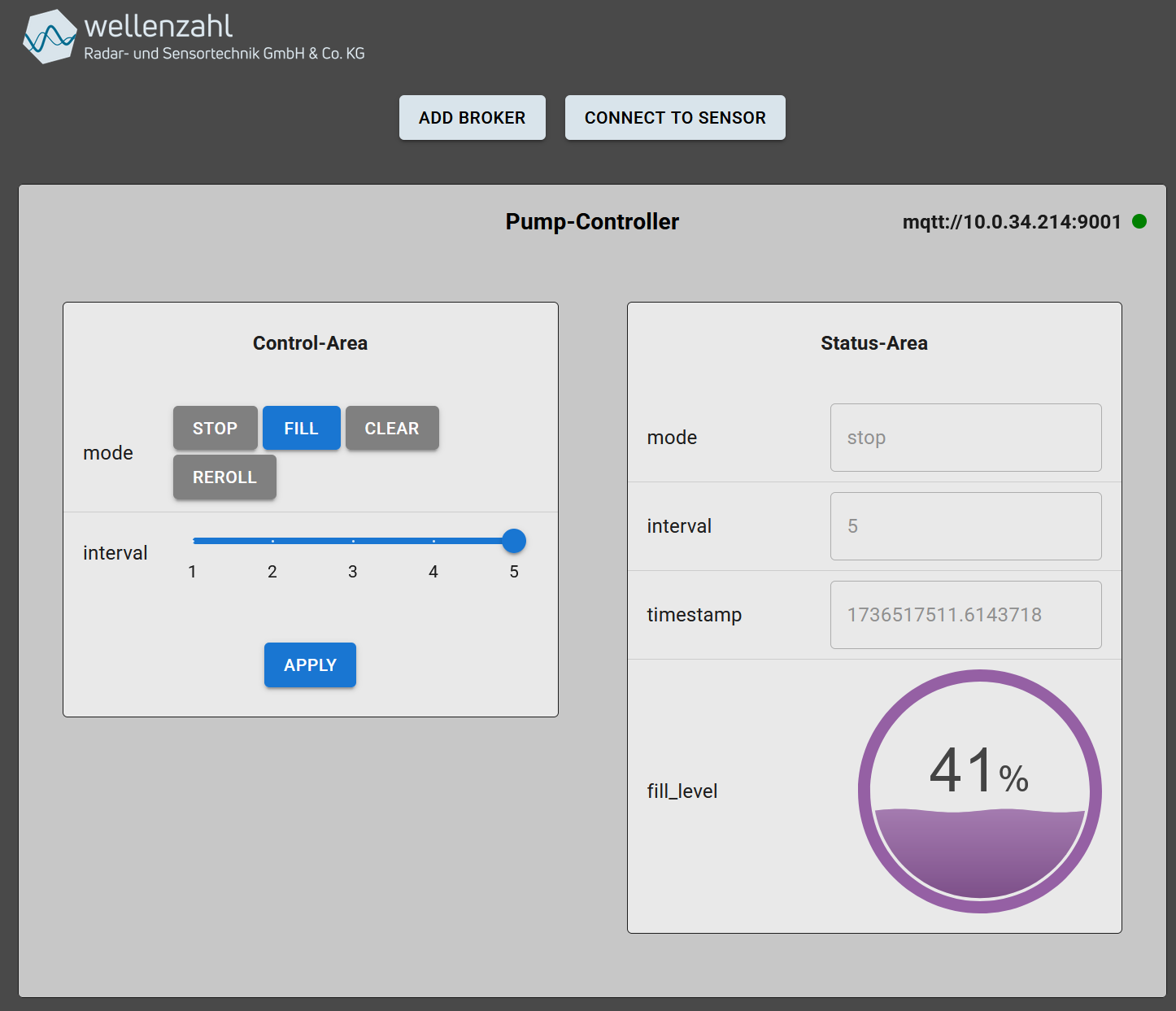

  3. Pumps which can be activated through the livedemo
  4. Camera stream which shows the livedemo

The complete signal processing is performed on the STM32L552 microcontroller of the RAPIDv3.21_wr10_EBG module
