RAPIDv3 Extension

NanoPi NEO Core Interface Board

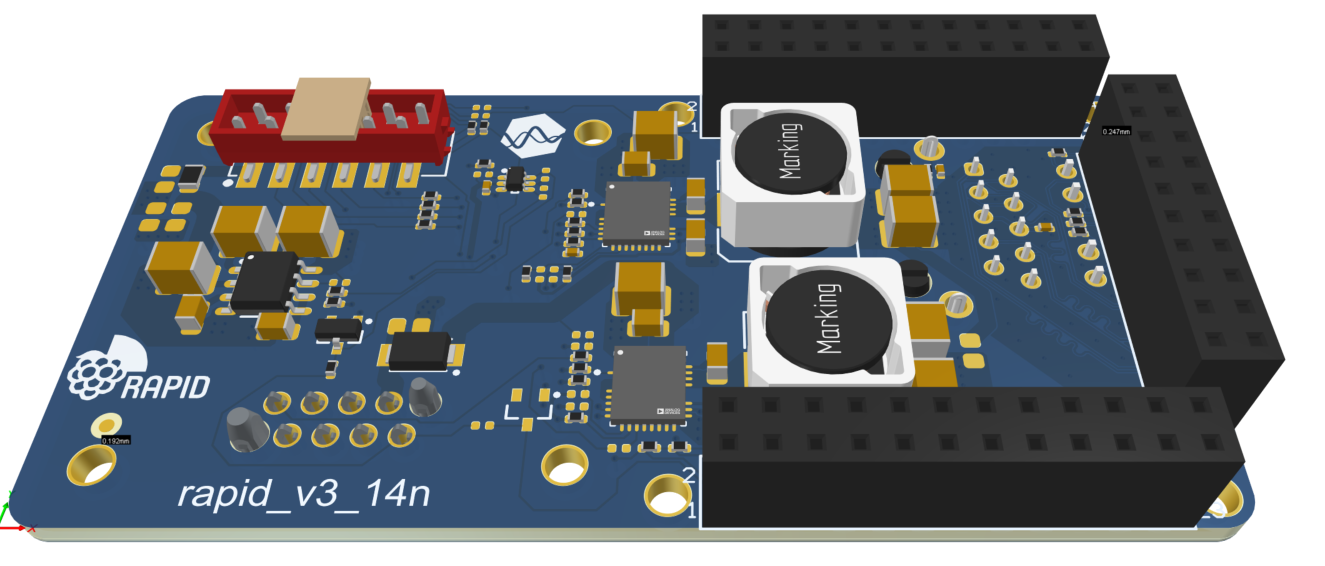

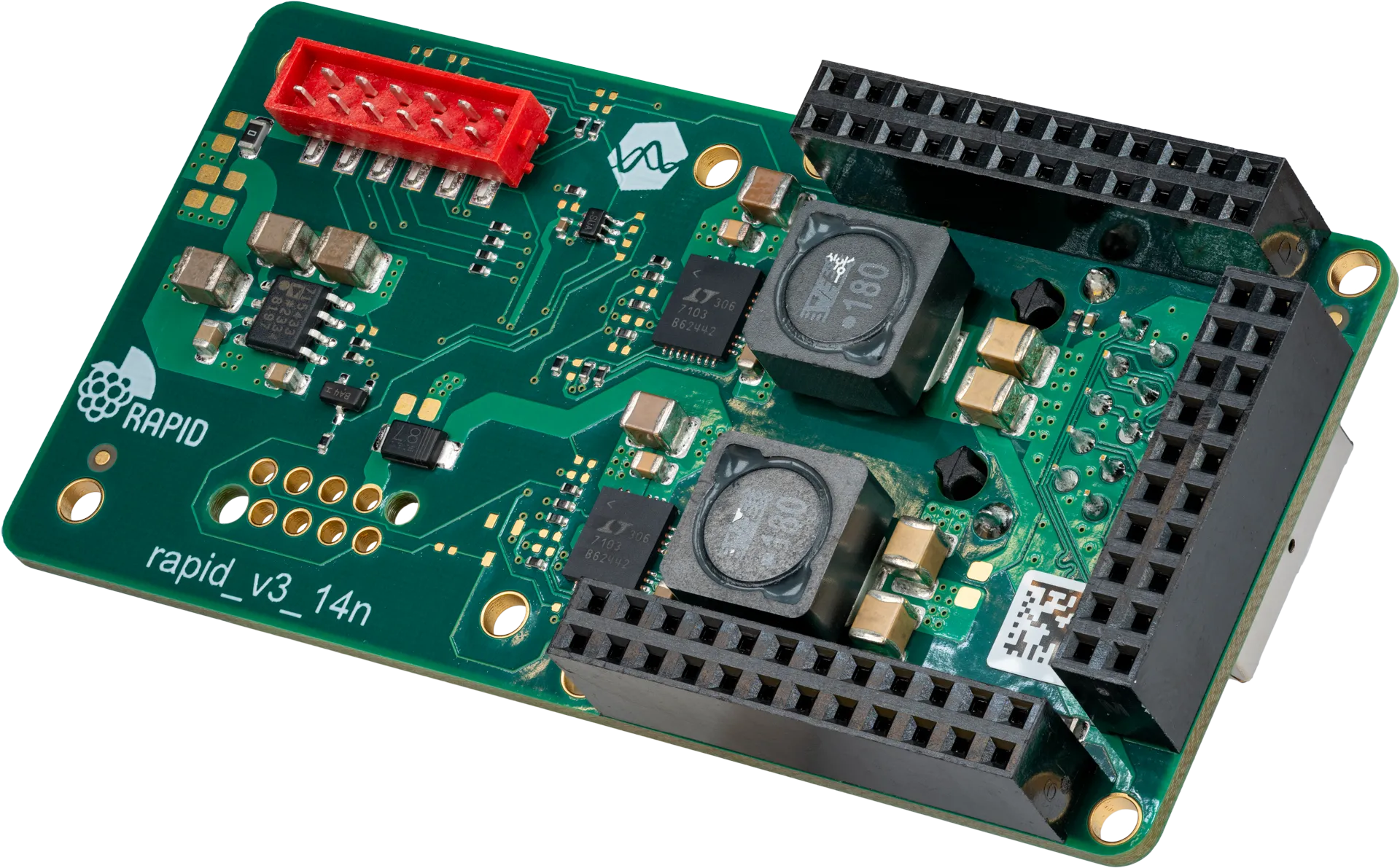

The interface board rapid_v3_14n can be used in combination with a NanoPi NEO Core. Two different assembly options are available:

  • for radar modules with 5 V power supply
  • for radar modules with 3.3 V power supply

The rapid_v3_14n board has following interfaces:

ConnectorFunctionDescription
8-pin PCB connector (490107670812S)

Power (7-100 V)

GND

Enable (> 2 V)

Trigger (max. 30 V)

used as power supply including a dedicated enable pin and trigger to start a radar measurement

single power supply for the radar module and the NanoPi NEO Core (2)

a flat ribbon cable connector is available from Würth Elektronik: 490107670812S

RJ451 Gbit/s EthernetConnected to the NanoPi NEO Core (2)
